PVC Electrical Tape Manufacturer — 600V–8,000V Grades

Flame-retardant PVC electrical tape from 0.13 mm to 0.25 mm, 5,000 V to 8,000 V breakdown, nine colours plus earth. Low lead and cadmium, RoHS and REACH compliant.

  • Made on our own coating line
  • Private label & custom widths
  • Third-party test reports
Request FOB QuoteRequest a sample
PVC Electrical Tape Manufacturer — 600V–8,000V Grades

What PVC electrical tape is actually for

Electrical tape is a mechanical product wearing an electrical badge. Its job is to hold a bundle together, resist abrasion where a loom rubs against a chassis, and keep moisture out of a joint — and to do all three without conducting, without burning, and without unravelling when the harness flexes. The dielectric figure matters, but it is rarely the reason a tape fails in the field. Unwind force, adhesion retention and flame retardance are.

We coat PVC film with a rubber-resin or acrylic adhesive on our own line, then slit and spool to order. That means the unwind tension your wrapping machine sees is a parameter we set, not something we inherit from a converter. If your line jams on every third roll, that is a conversation we can actually finish.

Choosing a thickness

Thickness, not colour, is the decision that matters most. Two rules cover the majority of cases:

  • Up to 600 V, general wiring and automotive harness — 0.13 mm to 0.18 mm. These are the high-volume grades: flexible, easy to wrap by hand, and the cheapest per roll.
  • Up to 1,000 V, distribution and panel work — 0.20 mm and 0.25 mm. The extra film carries the higher breakdown voltage and resists mechanical damage better, at the cost of flexibility and price.

If you are wrapping a demagnetising coil or a transformer, specify the higher-tack grades — the adhesive has to hold against sustained pull, not just survive a wrapping operation.

Certification, stated honestly

The North American electrical market expects a listing, and a listing belongs to a specific file, product range and plant. We produce grades built to UL 510 and CSA C22.2 No.197 requirements, and we confirm the currently listed scope in writing before you design one into a certified assembly. If your project does not require a listing, the general-purpose grades are materially cheaper and we will tell you plainly which is which rather than letting you assume.

Every grade is formulated with low lead and cadmium content and is supplied with RoHS and REACH declarations. A California Proposition 65 statement is issued per batch on request.

Automotive harness

Colour-coded wrapping of wiring looms where abrasion resistance and a clean unwind matter.

Building wiring

Insulating and bundling conductors in distribution and panel work up to 1,000 V.

Demagnetising coils

Protecting coil windings on motors and transformers where high-tack retention is needed.

Harness houses

High-volume manual and semi-automatic wrapping lines needing a consistent unwind force.

Specifying a colour

Nine colours plus the green/yellow earth stripe cover the standard wiring codes. Colour is a batch parameter, not an afterthought — order it with the thickness, because changing colour on a running line is a production event, not a stock pick. Non-standard earth stripe ratios are possible above 5,000 rolls.

Related reading: how UL 510 thickness and voltage ratings work, and when rubber adhesive beats PVC film.

Specifications

PVC Electrical Tape Manufacturer — 600V–8,000V Grades — available grades

Confirm the exact grade code with your sales contact before ordering — dimensions and tolerances are produced to order.

Electrical Tape — 18 grades. Dimensions and tolerances are produced to order.
Code Thickness Width × Length Breakdown Tensile Elongation Adhesive Colours Compliance Status
WR-EL-01 0.13 mm / 5 mil 18 mm × 20 yd 5,000 V 20 N/cm 180 % Rubber resin 9 colours + earth Declarations & reports on request Standard
WR-EL-02 0.13 mm / 5 mil 19 mm × 20 yd 5,000 V 20 N/cm 180 % Rubber resin 9 colours + earth Declarations & reports on request Standard
WR-EL-03 0.13 mm / 5 mil 19 mm × 25 yd 5,000 V 20 N/cm 180 % Rubber resin 9 colours + earth Declarations & reports on request Standard
WR-EL-04 0.15 mm / 6 mil 19 mm × 20 yd 6,000 V 23 N/cm 190 % Rubber resin 9 colours + earth Declarations & reports on request Standard
WR-EL-05 0.15 mm / 6 mil 19 mm × 33 yd 6,000 V 23 N/cm 190 % Rubber resin 9 colours + earth Declarations & reports on request Standard
WR-EL-06 0.15 mm / 6 mil 25 mm × 20 yd 6,000 V 23 N/cm 190 % Rubber resin 9 colours + earth Declarations & reports on request Standard
WR-EL-07 0.18 mm / 7 mil 19 mm × 20 yd 6,500 V 26 N/cm 200 % Rubber resin Black, white, red, blue, green Declarations & reports on request Standard
WR-EL-08 0.18 mm / 7 mil 19 mm × 33 yd 6,500 V 26 N/cm 200 % Rubber resin Black, white, red, blue, green Declarations & reports on request Standard
WR-EL-09 0.18 mm / 7 mil 25 mm × 20 yd 6,500 V 26 N/cm 200 % Rubber resin Black, white, red, blue, green Declarations & reports on request Standard
WR-EL-10 0.20 mm / 8 mil 19 mm × 20 yd 7,000 V 28 N/cm 210 % Rubber resin Black, white, red, blue, green Declarations & reports on request Standard
WR-EL-11 0.20 mm / 8 mil 25 mm × 20 yd 7,000 V 28 N/cm 210 % Rubber resin Black, white, red, blue, green Declarations & reports on request Standard
WR-EL-12 0.25 mm / 10 mil 19 mm × 30 yd 8,000 V 32 N/cm 220 % Rubber resin Black, white, red, blue, green Declarations & reports on request Standard
WR-EL-13 0.25 mm / 10 mil 25 mm × 30 yd 8,000 V 32 N/cm 220 % Rubber resin Black, white, red, blue, green Declarations & reports on request Standard
WR-EL-14 0.13 mm / 5 mil 19 mm × 20 yd 5,000 V 20 N/cm 180 % Rubber resin, low lead Black, white, red, blue, green Grade available to UL 510 / CSA C22.2 No.197 — scope confirmed in writing To be confirmed
WR-EL-15 0.15 mm / 6 mil 19 mm × 20 yd 6,000 V 23 N/cm 190 % Rubber resin, low lead Black, white, red, blue, green Grade available to UL 510 / CSA C22.2 No.197 — scope confirmed in writing To be confirmed
WR-EL-16 0.18 mm / 7 mil 19 mm × 20 yd 6,500 V 26 N/cm 200 % Rubber resin, low lead Black, white, red, blue, green Grade available to UL 510 / CSA C22.2 No.197 — scope confirmed in writing To be confirmed
WR-EL-17 0.18 mm / 7 mil 19 mm × 33 yd 6,500 V 26 N/cm 200 % Acrylic, flame retardant Black, white, red, blue Grade available to UL 510 / CSA C22.2 No.197 — scope confirmed in writing To be confirmed
WR-EL-18 0.20 mm / 8 mil 19 mm × 20 yd 7,000 V 28 N/cm 210 % Acrylic, flame retardant Black, white, red, blue Grade available to UL 510 / CSA C22.2 No.197 — scope confirmed in writing To be confirmed

Specification note: Values are typical figures for the grade shown and are confirmed in writing on your order confirmation and test report. Rows marked "to be confirmed" are being verified with the plant — ask us for the current status before designing them into a certified assembly.

Frequently asked

Is your electrical tape UL listed?

We can supply PVC electrical tape produced to UL 510 and CSA C22.2 No.197 requirements for North American buyers. Because a listing applies to a specific file, product range and factory, we confirm the current listed scope in writing before you specify it into a certified assembly. If you need an unlisted general-purpose grade, the price is materially lower and we will tell you plainly which is which.

What is the difference between 600 V and 1,000 V tape?

It is thickness, not chemistry. The 0.13–0.18 mm grades are rated for circuits up to 600 V; the 0.20 mm and 0.25 mm grades carry a 1,000 V service rating and a higher breakdown voltage. For harness wrapping on low-voltage automotive circuits, 0.13 mm is standard. For mains distribution work, specify 0.20 mm or above.

Is the tape RoHS and REACH compliant?

Ask us for the report rather than take our word for it. Our PVC electrical tape is formulated for low lead and cadmium content, and we supply the RoHS and REACH test report with its number so your own compliance team can check the measured values against the limits that apply in your market. If your market applies California Proposition 65, the Prop 65 statement is issued per batch on request.

Can you supply the earth (green/yellow) colour to spec?

Yes. Earth tape is available in the 0.13 mm and 0.15 mm grades in the standard 4:1 green/yellow stripe. Non-standard stripe ratios are possible on runs above 5,000 rolls.

How is breakdown voltage measured?

By dielectric breakdown test on a single layer at the specified thickness, following the method in the relevant standard. Test reports from SGS or Intertek state the method, sample thickness and result, so you can compare like with like against any other supplier.

Product story

How the range actually behaves

Construction, the relationship between thickness and breakdown voltage, the grades the factory nominates for each application, and where every certification claim on this page comes from.

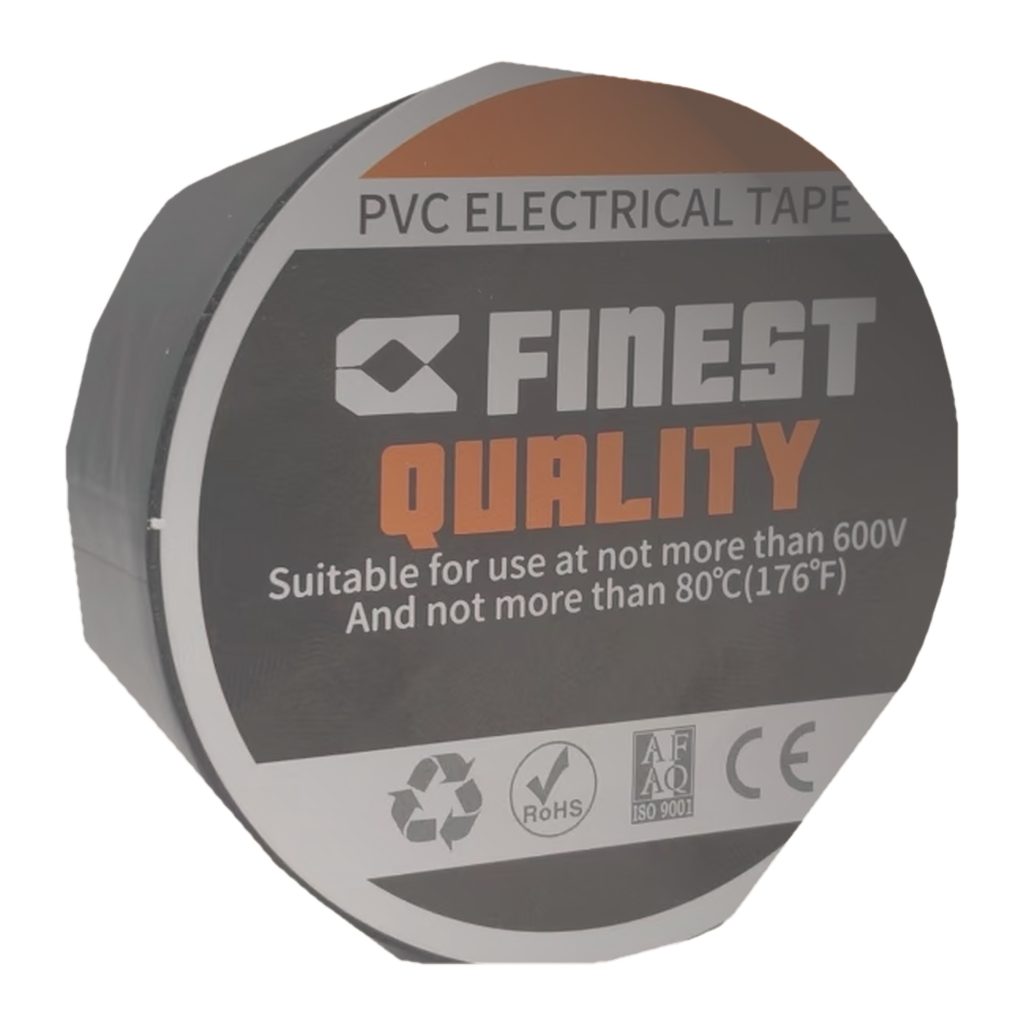

PVC electrical tape roll, factory label facing camera

Electrical tape

0.130 mm PVC film, 5,000 V breakdown

Eighteen grades from 0.105 mm to 0.20 mm. Dielectric strength runs 25.00 to 42.86 kV/mm across the range, and the catalogue nominates a grade for each of four application groups rather than selling thickness alone.

Working voltage
600V

from the roll label

Width
18mm

from the roll label

Roll length
10 / 20yd

10 and 20 yard

Cross-section of the tape A magnified cut edge showing the PVC film backing above the rubber-resin adhesive coat. Drawn at the RHE06 thickness of 0.130 millimetres; the adhesive coat is roughly a quarter of the total and the film carries the rest. 0.130 mm PVC film backing — carries the dielectric strength Rubber-resin adhesive coat — adhesion and conformability

Construction

A film that insulates, a coat that grips

Every grade in this family is a PVC film with a rubber-resin adhesive coat. The catalogue records both — a backing column and an adhesive column, identical across all eighteen rows — so there is no grade in this range that departs from this construction.

The film does the electrical work. The coat does the mechanical work: it grips through dust, holds a clean wrap and stretches enough to conform without lifting at the edges.

  • Backing: PVC film across all eighteen grades
  • Adhesive: rubber-resin across all eighteen grades
  • Two surface finishes in the range: matte and gloss
  • Six colours confirmed by the factory

Choosing a grade

Breakdown voltage does not follow thickness

The obvious assumption is that thicker tape breaks down at a proportionally higher voltage. The catalogue does not behave that way, and the reason matters if you are designing into a mains assembly.

Breakdown voltage against tape thickness for all eighteen grades Each dot is one catalogue grade. Horizontal axis is total thickness in millimetres, vertical axis is breakdown voltage in volts. The dashed line shows what the relationship would be if dielectric strength were constant at 38 kilovolts per millimetre. Points sit both above and below that line, which shows dielectric strength follows the formulation rather than the thickness. 3,000 4,000 5,000 6,000 7,000 8,000 0.10 0.12 0.14 0.16 0.18 0.20 dashed: if dielectric strength were constant at 38 kV/mm Total thickness (mm) Breakdown voltage (V) RHE01 — 0.105 mm, 4,500 V, 42.86 kV/mm 01 RHE02 — 0.120 mm, 4,000 V, 33.33 kV/mm 02 RHE03 — 0.120 mm, 4,500 V, 37.50 kV/mm RHE04 — 0.120 mm, 4,500 V, 37.50 kV/mm 03·04 RHE05 — 0.130 mm, 3,250 V, 25.00 kV/mm 05 RHE06 — 0.130 mm, 5,000 V, 38.46 kV/mm RHE07 — 0.130 mm, 5,000 V, 38.46 kV/mm RHE10 — 0.130 mm, 5,000 V, 38.46 kV/mm 06·07·10 RHE08 — 0.130 mm, 4,000 V, 30.77 kV/mm RHE09 — 0.130 mm, 4,000 V, 30.77 kV/mm 08·09 RHE11 — 0.150 mm, 6,000 V, 40.00 kV/mm 11 RHE12 — 0.180 mm, 7,000 V, 38.89 kV/mm RHE13 — 0.180 mm, 7,000 V, 38.89 kV/mm 12·13 RHE14 — 0.190 mm, 7,000 V, 36.84 kV/mm RHE15 — 0.190 mm, 7,000 V, 36.84 kV/mm 14·15 RHE16 — 0.190 mm, 7,500 V, 39.47 kV/mm RHE17 — 0.190 mm, 7,500 V, 39.47 kV/mm 16·17 RHE18 — 0.200 mm, 8,000 V, 40.00 kV/mm 18
Standard grade Grade the catalogue marks UL or UL/CSA Constant-strength reference

The thinnest grade is among the strongest

At 0.105 mm, RHE01 reaches 42.86 kV/mm. The 0.19 mm RHE15 sits at 36.84. Thicker is not automatically safer — dielectric strength follows the formulation, so specify the grade and let the thickness follow.

One thickness, several very different grades

6 grades sit at 0.130 mm. Their breakdown voltage ranges from 3,250 V to 5,000 V — a 54% spread inside one thickness. This is why a buyer who specifies "0.130 mm electrical tape" has not specified anything yet.

Working voltage is a separate number

The label rates the tape for use at not more than 600 V. That is the working voltage. The 3250–8000 V in the catalogue is breakdown, a laboratory figure. They differ by an order of magnitude and the two are never interchanged on this page.

Applications

The catalogue nominates a grade for each of these

Vehicle hand wiring

The grades the catalogue nominates for vehicle hand wiring and general electrical work. Two of the three carry the low-lead formulation.

RHE01 RHE02 RHE03

General electrical work

The widest band of the range, from 0.13 mm economy up to the 0.18 mm grades the catalogue nominates for UL construction. Largest set here because it is where most buyers land.

RHE04 RHE05 RHE06 RHE07 RHE10 RHE11 RHE12 RHE13

Economy appliances

Lower-cost grades for appliances where the tape is inside a housing rather than inside a mains assembly. Note RHE05 sits at 3250 V — the lowest breakdown in the range, and worth knowing before you substitute it.

RHE08 RHE09 RHE14 RHE15

Demagnetising coils

The three heaviest grades: 0.19 to 0.20 mm, 7500 to 8000 V breakdown, elongation at 200 %. All three carry the low-lead formulation and are the grades the catalogue marks UL/CSA.

RHE16 RHE17 RHE18

All grades

Eighteen grades, as printed

Transcribed from the factory catalogue, page 5. RHE01 to RHE09 sit on page 5, RHE10 to RHE18 on page 7. Dielectric strength is derived as breakdown divided by thickness.
Grade Thickness Breakdown kV/mm Adhesion Tensile Elongation Low lead Catalogue marks
RHE01 0.105 mm 4,500 V 42.86 0.12 kg/cm 1.5 kg/cm 150 % low lead —
RHE02 0.120 mm 4,000 V 33.33 0.16 kg/cm 1.8 kg/cm 150 % not marked —
RHE03 0.120 mm 4,500 V 37.50 0.16 kg/cm 1.8 kg/cm 150 % low lead —
RHE04 0.120 mm 4,500 V 37.50 0.18 kg/cm 2.0 kg/cm 150 % not marked —
RHE05 0.130 mm 3,250 V 25.00 0.18 kg/cm 2.0 kg/cm 150 % low lead —
RHE06 0.130 mm 5,000 V 38.46 0.18 kg/cm 2.0 kg/cm 150 % not marked —
RHE07 0.130 mm 5,000 V 38.46 0.18 kg/cm 2.0 kg/cm 150 % not marked —
RHE08 0.130 mm 4,000 V 30.77 0.18 kg/cm 2.0 kg/cm 150 % not marked —
RHE09 0.130 mm 4,000 V 30.77 0.18 kg/cm 2.0 kg/cm 150 % not marked —
RHE10 0.130 mm 5,000 V 38.46 0.18 kg/cm 2.0 kg/cm 150 % not marked —
RHE11 0.150 mm 6,000 V 40.00 0.18 kg/cm 2.5 kg/cm 175 % not marked —
RHE12 0.180 mm 7,000 V 38.89 0.18 kg/cm 2.6 kg/cm 180 % not marked UL
RHE13 0.180 mm 7,000 V 38.89 0.18 kg/cm 2.6 kg/cm 180 % not marked UL
RHE14 0.190 mm 7,000 V 36.84 0.16 kg/cm 2.3 kg/cm 160 % not marked —
RHE15 0.190 mm 7,000 V 36.84 0.13 kg/cm 2.0 kg/cm 160 % not marked —
RHE16 0.190 mm 7,500 V 39.47 0.18 kg/cm 3.0 kg/cm 200 % low lead UL / CSA
RHE17 0.190 mm 7,500 V 39.47 0.18 kg/cm 2.8 kg/cm 200 % low lead UL / CSA
RHE18 0.200 mm 8,000 V 40.00 0.18 kg/cm 3.0 kg/cm 200 % low lead UL / CSA

"Low lead" is a material property printed in the catalogue applications column, not a RoHS certificate, and it is shown as such. UL and CSA appear only where the catalogue prints them; we hold no file number yet and will supply it with the quotation once confirmed.

Colours

Six colours, confirmed by the factory

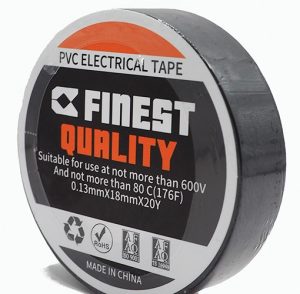

  • PVC electrical tape roll, Black Black

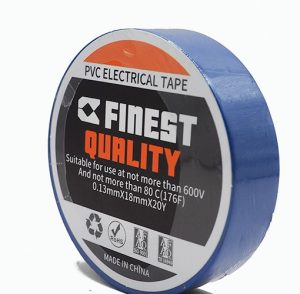

  • PVC electrical tape roll, Blue Blue

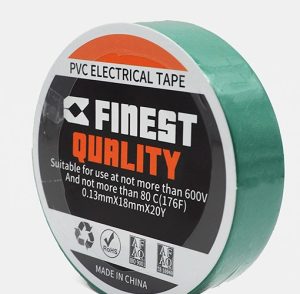

  • PVC electrical tape roll, Green Green

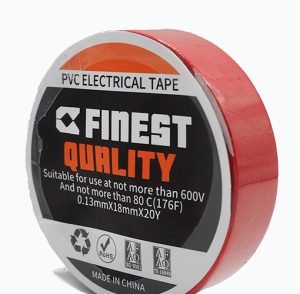

  • PVC electrical tape roll, Red Red

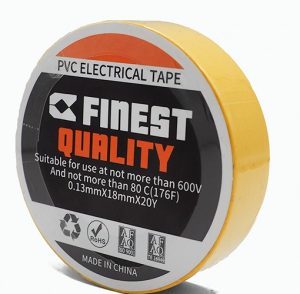

  • PVC electrical tape roll, Yellow Yellow

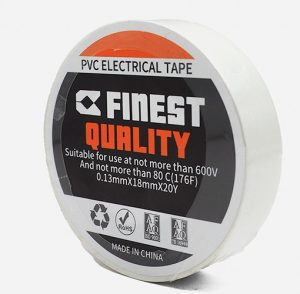

  • PVC electrical tape roll, White White

The catalogue does not map colours to grade codes, so we confirm the combination on your order confirmation rather than guessing it here.

Where each claim comes from

We print what the factory publishes and name the page it is on. A claim we cannot trace to a document does not appear here, and a claim we can trace is still sent with its number on request so your own team can check it.

  • ISO 9001 quality management system Not claimed on this site factory catalogue, page 3
  • ISO 14001 environmental management Not claimed on this site factory catalogue, page 3
  • SGS testing Not claimed on this site factory catalogue, page 3
  • EU RoHS Not claimed on this site factory catalogue, page 3
  • REACH Not claimed on this site factory catalogue, page 3
  • UL 510 / CSA C22.2 No.197 Catalogue marks these grades: RHE12 (UL), RHE13 (UL), RHE16 (UL / CSA), RHE17 (UL / CSA), RHE18 (UL / CSA) factory catalogue, page 7 — file number still to confirm

Catalogue: Dongguan Gaorun Adhesive Products Co., Ltd product catalogue. The PDF is a scanned image with no text layer, so figures were read from the rendered pages and each grade keeps its page number for re-checking.
